708-2H-00280KT 708-2H-00280 Hydraulic Main Pump Seal Kit For Komatsu PC350-6Z

Product Categories
Guangzhou Sonka Engineering Machinery Co., Ltd.
Contact Now

708-2H-00280KT 708-2H-00280 Hydraulic Main Pump Seal Kit For Komatsu PC350-6Z

  • 1
  • 2
  • 3

Brand Name : HQPA/OEM

Model Number : 708-2H-00280KT 708-2H-00280 Hydraulic Main Pump Seal Kit

Certification : ISO9001

Place of Origin : CHINA(MAINLAND)

MOQ : Negotiable

Price : negotiation

Payment Terms : Western Union, L/C, T/T, MoneyGram, D/A, D/P

Supply Ability : 500 Sets per Week

Delivery Time : 3-5 days after payment received(public holiday excluded)

Packaging Details : PP bag inside, carton box outside

Product : 708-2H-00280KT 708-2H-00280 Hydraulic Main Pump Seal Kit

Part Number : 708-2H-00280KT 708-2H-00280 7082H00280KT 7082H00280 Hydraulic Pump Assy

Fit for model : Komatsu PC300-6 PC300-6Z PC300LC-6Z PC300LC-6 PC350-6 PC350-6Z PC350LC-6 PC350LC-6Z

Group : Hydraulic Main Pump Seal Kit / Pump Seal Kit

Loading Port : HUAGNPU,China (Mainland)

Packing : Neutral packing / HQPA packing

Contact Now

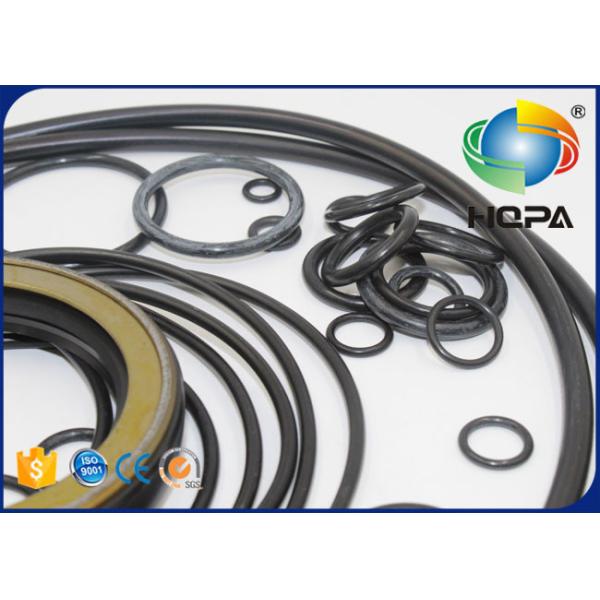

708-2H-00280KT 708-2H-00280 Hydraulic Main Pump Seal Kit for Komatsu PC350-6Z
1.Product Description:

The hydraulic main pump is a kind of fluid pump. About the fluid sealing, it usually uses the mechanical seal to contain the fluid within a vessel (typically pumps, mixers, etc.) where a rotating shaft passes through a stationary housing or occasionally, where the housing rotates around the shaft.

Mechanical seals are usually fixed at the point of entry or exit of a rotating shaft. Typically it is used to prevent the leakage of one high-pressure fluid into a lower pressure fluid.


2.General Product Information:

708-2H-00280KT 708-2H-00280 Hydraulic Main Pump Seal Kit for Komatsu PC350-6Z
Brand Name HQPA/OEM
Product Name 708-2H-00280KT 708-2H-00280 Hydraulic Main Pump Seal Kit for Komatsu PC350-6Z
Product style Hydraulic Main Pump Seal Kit / Main Pump Seal Kit
Part No. 708-2H-00280KT 708-2H-00280 7082H00280KT 7082H00280 Hydraulic Pump Assy
Related parts: Boom Cylinder Seal Kit / Arm Cylinder Seal Kit / Swing Motor Seal Kit / Travel Motor Seal Kit / Main Pump Seal Kit / Pilot Pump Seal Kit / Regulator Valve Seal Kit / Main Control Valve Seal Kit
Application Komatsu PC300-6 PC300-6Z PC300LC-6Z PC300LC-6 PC350-6 PC350-6Z PC350LC-6 PC350LC-6Z
MOQ 1 PC
Condition 100% New
Package Inner-Plastic Bag; Outer -Standard Carton Box.
Payment Western Union, L/C, T/T, MoneyGram, D/A, D/P etc.
Departure ports Huangpu(Guangzhou), China (Mainland)
Delivery time 3-5 days after payment received(public holiday excluded)
Place of origin China (Mainland)
Application Excavators, heavy machinery, mining, earth-moving, construction machinery, digger, car, truck.

3. Fit Model

Part Number: 708-2H-00280KT 708-2H-00280
Group: Hydraulic Main Pump Seal Kit
Fit for model: Komatsu PC300-6 PC300-6Z PC300LC-6Z PC300LC-6 PC350-6 PC350-6Z PC350LC-6 PC350LC-6Z

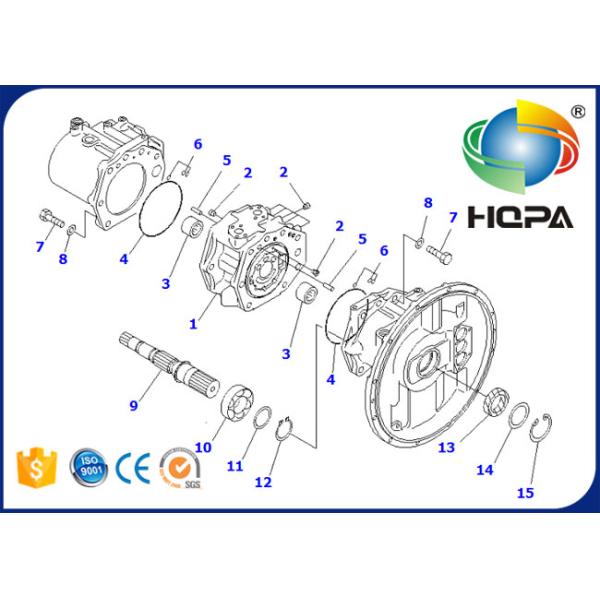

4.Related parts

708-2H-00280KT 708-2H-00280 Hydraulic Main Pump Seal Kit For Komatsu PC350-6Z

Part No Parts name Part No Parts name
708-2H-00280 PUMP ASS'Y 207-01-31141 BOLT
07005-03016 GASKET 207-01-31150 GAUGE
207-01-61190 TUBE 01010-81240 BOLT
01010-81245 BOLT 01643-31232 WASHER
07040-11209 PLUG 07002-11223 O-RING
07002-01223 O-RING 708-2H-00280 PUMP ASS'Y
708-2H-01280 PUMP SUB ASS'Y 708-2H-04110 CASE ASS'Y,FRONT
07044-12412 PLUG 708-1W-28910 O-RING
708-2L-25650 ORIFICE 04530-01222 BOLT,EYE
01252-61025 BOLT 01252-61065 BOLT
04020-00616 PIN 207-62-33920 ELBOW
708-2L-23950 O-RING 21T-62-29960 TEE
07102-20304 HOSE 01010-81025 BOLT
708-1L-29120 PLATE 07000-A2080 O-RING
07000-B2018 O-RING 708-2L-25731 SPOOL
708-2L-25611 PISTON 708-2L-25521 SLEEVE
708-2L-25531 PLUG 708-2L-24910 O-RING
708-2L-25542 SEAT 708-2L-25551 SPRING
708-2L-25640 SEAT 708-2H-25620 PLUG
07001-02012 RING,BACK-UP 07000-B2012 O-RING
01583-12012 NUT 708-2L-25631 SPACER
708-2L-25480 FILTER 708-2L-25490 O-RING
708-8E-16150 PLUG 708-2L-23920 O-RING
07000-B2110 O-RING 708-2L-25480 FILTER
708-2L-25490 O-RING 708-2L-25631 SPACER
708-2H-25650 ORIFICE 07000-02110 O-RING
708-8E-16150 PLUG 07002-11023 O-RING
708-2L-25211 SOLENOID ASS'Y 07000-02016 O-RING
01252-60612 BOLT 708-2L-25223 SLEEVE
708-2L-25232 SPOOL 708-2L-25291 SEAT
708-2L-25251 SPRING 708-2L-25261 SPRING
708-2L-25281 PISTON 07040-11007 PLUG
07002-01023 O-RING 708-2H-25370 LEVER
708-2L-25311 PIN 708-2L-25330 BEARING
708-2L-25321 WASHER 01580-00605 NUT
708-2L-25340 PLUG 01583-11811 NUT
07002-01823 O-RING 708-2L-25382 PLUG
07000-02010 O-RING 04065-01610 RING
708-2L-25731 SPOOL 708-2L-25521 SLEEVE
708-2L-25531 PLUG 07002-12034 O-RING
708-2L-25542 SEAT 708-2L-25551 SPRING
708-2H-25620 PLUG 708-2L-25611 PISTON
708-2L-25640 SEAT 07001-02012 RING,BACK-UP
07000-12012 O-RING 01583-12012 NUT
708-1H-12262 BEARING 07000-A5180 O-RING
04020-01434 PIN 07000-B2012 O-RING
01010-61860 BOLT 01643-31845 WASHER
708-2H-22110 SHAFT 708-1H-22150 BEARING
708-17-05010 WASHER KIT 708-17-12780 RING,SNAP
708-27-22811 SEAL,OIL 708-2H-22160 SPACER
04065-08225 RING,SNAP 708-18-13230 PIN
04065-05820 RING 708-2H-23130 SEAT
708-2H-23151 SPRING 708-2H-23141 SEAT
708-2H-23350 GUIDE,RETAINER 708-2H-23360 PIN
708-2H-23340 RETAINER,SHOE 708-2H-23311 PISTON SUB ASS'Y
708-2H-21740 PLUG 708-1W-28910 O-RING
706-87-40150 PLUG 20B-27-11210 BLEEDER
708-2L-25650 ORIFICE 04530-01222 BOLT,EYE
708-2H-22120 SHAFT 708-1H-22150 BEARING
708-17-05010 WASHER KIT 708-17-12780 RING,SNAP
708-18-13230 PIN 04065-05820 RING
708-2H-23130 SEAT 708-2H-23151 SPRING
708-2H-23141 SEAT 708-2H-23350 GUIDE,RETAINER
708-2H-23360 PIN 708-2H-23340 RETAINER,SHOE
708-2H-23311 PISTON SUB ASS'Y 04020-01434 PIN
07000-B1009 O-RING 706-75-40340 BOLT
708-2H-24311 PISTON 708-2H-24220 ROD
04020-00514 PIN 708-2H-25870 CAM
01010-80825 BOLT 01643-30823 WASHER
708-2H-24260 STOPPER 07000-B3032 O-RING
07001-03032 RING 708-2H-24320 SCREW
01643-32460 WASHER 01583-52414 NUT
708-2H-24270 SCREW 708-1W-28910 O-RING
708-2H-24140 SPRING 708-2H-24130 PLUG
708-2L-24620 O-RING 708-2H-24330 PLATE
708-2H-24340 PACKING 708-23-12350 SCREW

5. Related models:

PC300-6 PC300-6Z PC300LC-6Z PC300LC-6 PC350-6
PC350-6Z PC350LC-6 PC350LC-6Z PC30MR-3 PC490LC-10
D155AX-7 PC210LC-6LE D60O-8 PC158US-2 PC20MR-2-A
D40PL-3 D85MS-15 PC1600-1 PC75US-3 PC600-6KJ
PC850SE-8 PC300-8M0 PC07-1 D700D D275A-5D
PC100-5S PC600LC-7 PC100-1 PC750SE-7 PC130-8
PC450-7 D65WX-17 PC200LC-3 PC25R-8 D275A-2
D70LE-12 PC450-6K PC850SE-8R PC30-6 D155AX-3
PC100L-3 PC12UU-1 D20PL-3 DRT031-4A PC15-1
D20P-5 PC80MR-3 PC07-2 D50P-18A PC3000-1A
PC40-3 D53A-16 PC228US-3 PC200LC-7B PC300LC-5K

Welcome to contact us, we can provide high quality and the best price!

708-2H-00280KT 708-2H-00280 Hydraulic Main Pump Seal Kit For Komatsu PC350-6Z708-2H-00280KT 708-2H-00280 Hydraulic Main Pump Seal Kit For Komatsu PC350-6Z708-2H-00280KT 708-2H-00280 Hydraulic Main Pump Seal Kit For Komatsu PC350-6Z
